Available for pre-order NOW

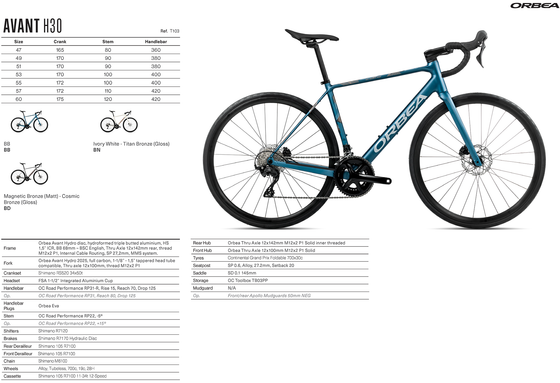

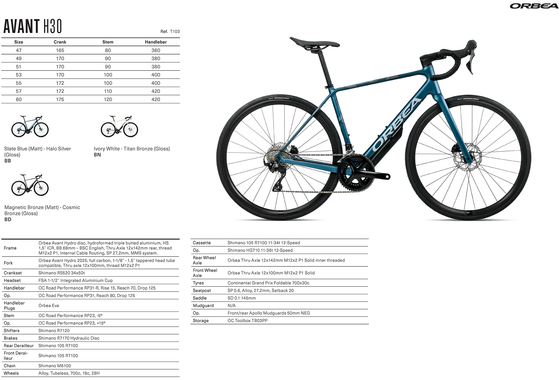

SPECIFICATIONS
FRAMESET
FRAME - Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.
FORK - Orbea Avant Hydro 2025, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
STEERER TUBE - FSA 1-1/2" Integrated Aluminium Cup
DRIVETRAIN
CRANKSET - Shimano RS520 34x50t
SHIFTERS - Shimano R7120
CASSETTE - Shimano 105 R7100 11-34t 12-Speed
Options - Shimano HG710 11-36t 12-Speed
REAR DERAILLEUR - Shimano 105 R7100
FRONT DERAILLEUR - Shimano 105 R7100
CHAIN - Shimano M6100
COCKPIT
HANDLEBAR - OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
Options - OC Road Performance RP10-R Carbon, Rise 15, Reach 70,Drop125
- OC Road Performance RP31, Reach 80, Drop 125
STEM - OC Road Performance RP22, -5º
Options - OC Road Performance RP22, +15º
BRAKES
BRAKES - Shimano R7170 Hydraulic Disc
WHEELS
WHEELS - Alloy, Tubeless, 700c, 19c, 28H
Options - OQUO Road Performance 35 PRO+ Vittoria Corsa Next 622-28C
- OQUO Road Performance 35 TEAM+ Vittoria Corsa Next 622-28C
- OQUO Road Performance 45 TEAM+ Vittoria Corsa Next 622-28C
TIRES - Continental Grand Prix Foldable 700x30c
FRONT WHEEL AXLE - Orbea Thru Axle 12x100mm M12x2 P1 Solid
Options - Orbea Thru Axle 12x100mm M12x2 P1 Lite
REAR WHEEL AXLE - Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
Options - Orbea Thru Axle 12x142mm M12x2 P1 Lite
COMPONENTS
SEATPOST - SP 0.6, Alloy, 27.2mm, Setback 20
Options - OC Performance XP10-S Carbon, Setback 20
- OC Performance XP10 Carbon, Setback 0
SADDLE - SD 0.1 145mm
ACCESSORIES
HANDLEBAR TAPE - Orbea Eva
STORAGE - OC Toolbox TB03PP
MUDGUARD - N/A
Options - Front/rear Apollo Mudguards 50mm NEG
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
OPEN THE DOORS TO THE ROAD
A perfect companion, no matter how far the road takes you
Expect the unexpected every time you he![]()
ad out. With Avant's blend of speed and comfort, you could be out all day.
Comfort Is Key
No matter who’s riding, comfort is key. That’s why in our Avant evolution, we looked from every perspective to amplify it.
Ready For Whatever
Avant is a capable alloy road bike packed with advanced manufacturing and clever features.
Carbon Look
Each weld on the main frame is polished smooth, matching the aesthetics of a carbon frame.
Advanced Alloy
Controlling the shapes and wall thickness of our aluminium reduces weight, adds comfort and increases strength.
Forged Bottom Bracket
Routing the cables inside the frame means they are protected and take the most direct route, reducing friction.
Practical Solutions
Avant is packed with practical solutions to make every ride easier.
Multi-Mount System
Avant's mounting points fit any market-standard mudguard and fenders.
Service Box
Leave the saddle bag at home with the made-to-measure Service Box. There is space for necessities like tubes, CO2 cartridges, tire-levers and house keys.
