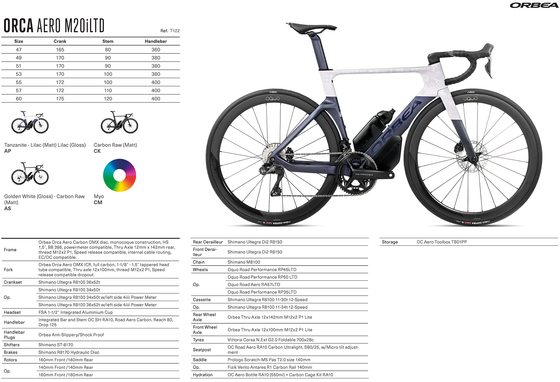

SPECIFICATIONS
FRAMESET
FRAME - Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible.
FORK - Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
STEERER TUBE - FSA 1-1/2" Integrated Aluminium Cup
DRIVETRAIN
CRANKSET - Shimano Ultegra R8100 36x52t
Options - Shimano Ultegra R8100 36x52t with left side 4iiii Powermeter
- Shimano Ultegra R8100 34x50t
- Shimano Ultegra R8100 34x50t with left side 4iiii Powermeter
SHIFTERS - Shimano ST-8170
CASSETTE - Shimano Ultegra R8100 11-30t 12-Speed
Options - Shimano Ultegra R8100 11-34t 12-Speed
REAR DERAILLEUR - Shimano Ultegra Di2 R8150
FRONT DERAILLEUR - Shimano Ultegra Di2 R8150
CHAIN - Shimano M8100
COCKPIT
HANDLEBAR - Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125
BRAKES
BRAKES - Shimano R8170 Hydraulic Disc
ROTORS - 160mm Front /140mm Rear
Options - 160mm Front /160mm Rear
- 140mm Front /140mm Rear
WHEELS
WHEELS - Oquo Road Aero RP45LTD
Options - Oquo Road Performance RA57LTD
- Oquo Road Performance RP35LTD
- Oquo Road Performance RP50LTD
TIRES - Vittoria Corsa N.Ext G2.0 Foldable 700x28c
FRONT WHEEL AXLE - Orbea Thru Axle 12x100mm M12x2 P1 Lite
REAR WHEEL AXLE - Orbea Thru Axle 12x142mm M12x2 P1 Lite
COMPONENTS
SEATPOST - OC Road Aero RA10 Carbon Ultralight, SB0/25, w/Micro tilt adjustment
SADDLE - Prologo Scratch-M5 Pas T2.0 size 140mm
Options - Fizik Vento Antares R1 Carbon Rail 140mm
ACCESSORIES
HANDLEBAR TAPE - Orbea Anti-Slippery/Shock Proof
HYDRATION - OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10
STORAGE - OC Aero Toolbox TB01PP
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
